MEGAPOINT

Anti-vibration systems for light loads

MEGAPOINT

SKU: d739b3dadba7 Categories: , ,

Description

  • High performance in reduced thickness
  • Easy to lay
  • Durable material
Anti-vibration material supplied in panels, with a dimpled shape on one side with a thickness of 25 mm, produced using fibres and granules of SBR rubber (Stirene Butadiene Rubber), selected and compacted using a polyurethane glue in a hot process. A non-woven, non-stretch waperproof synthetic membrane is applied on one side of panel, for added protection; total superficial weight is 10 kg/m². Panels dimensions are m 1 lenght, m 1 width.

Additional information

Use

Light loads

Type

Anti-vibration

Thickness (mm)

25

Traffic load (N/mm²)

0,05

Applications

  • Isolation of inertial bases for HVAC, generators, etc.
  • Swimming pools isolation
  • Isolation of building foundations from vibrations coming from the ground as linear support

Download

Video

Optionals

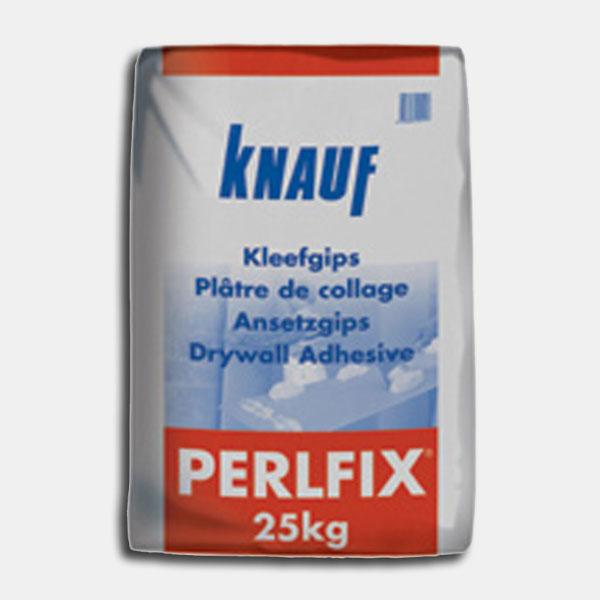

GLUE PERLFIX K465
Glue
Details

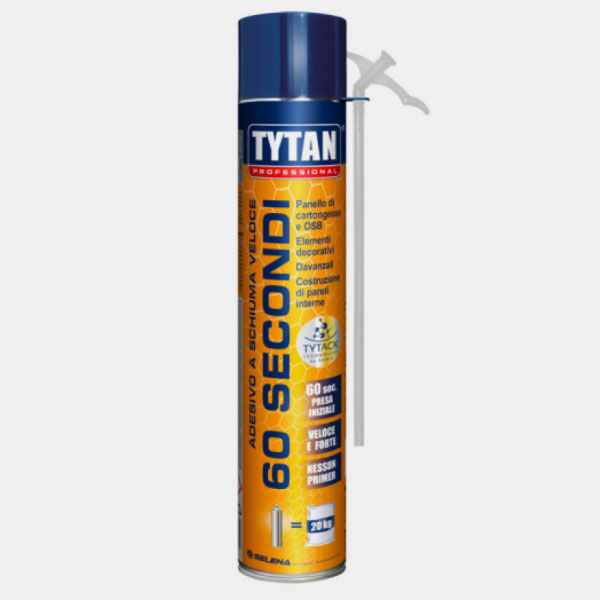

GLUE SELENA TYTAN 60s
Glue
Details

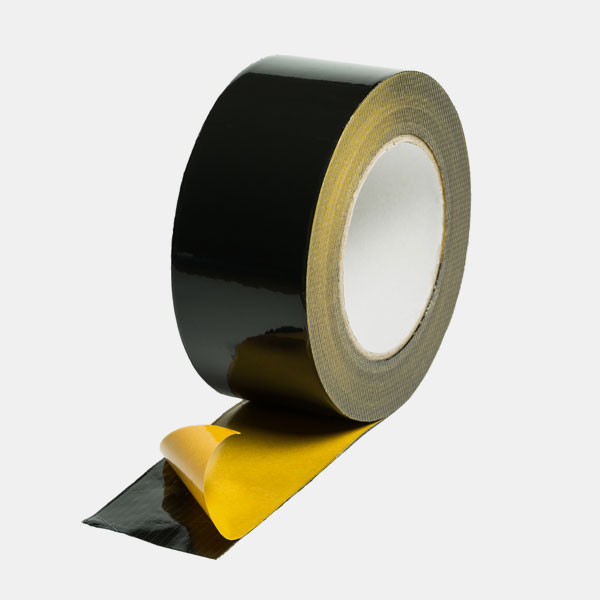

STIK HD
High adhesion strenght tape with superior ageing and weatherability performance
Details
