POINT

Impact noise acoustic insulation with high mechanical performances consisting of shaped panels composed of sbr rubber granules

POINT

SKU: aebdbcb76539 Categories: , , ,
Application: Under screed

Description

  • High noise and vibration isolation
  • Suitable for traffic loads up to 5000 kg/m²
  • Stability and durability

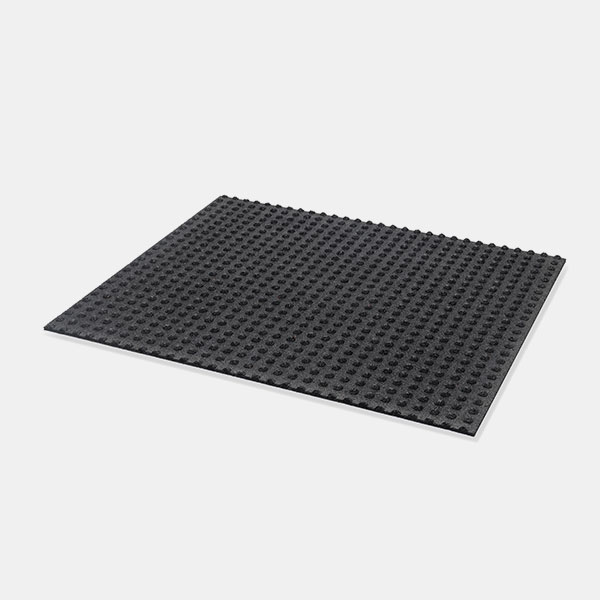

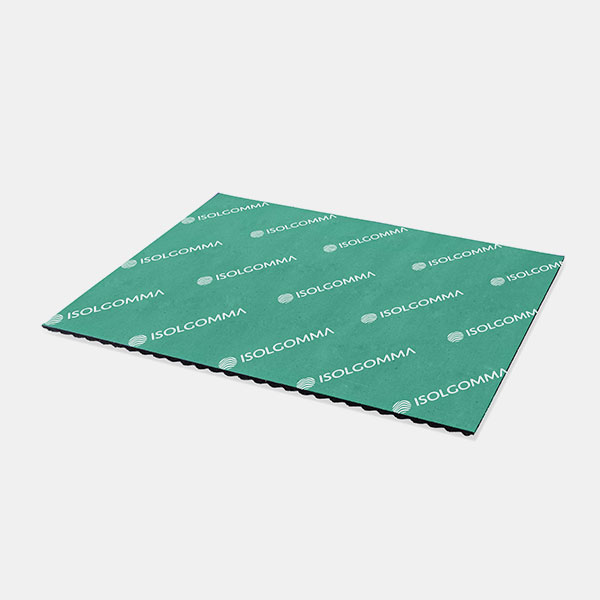

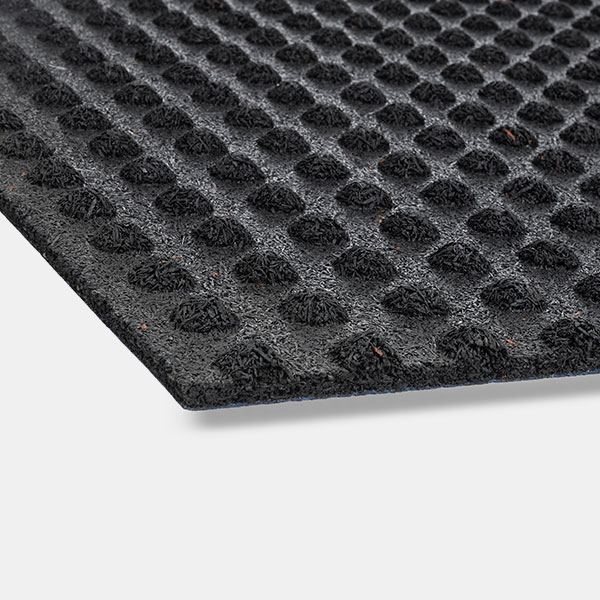

Acoustic insulation supplied in panels with a dimpled shape on one side with a thickness of 18 mm, made of SBR fibres and granules compacted using a polyurethane binder in a hot process. A blue synthetic non woven anti-stretch backing is applied on the upper side. The dimensions of the panels are 100 cm x 120 cm; total superficial weight is 6,7 kg/m². Dynamic stiffness s‘ 16 and impact sound pressure level attenuation 28 dB.

Additional information

Use

Floor

Application

Under screed

Under application

CLS floor

Type

Impact insulation

Thickness (mm)

18

Impact sound level attenuation ΔLw (dB)

28

Dynamic stiffness s' (dB)

16

Superficial weight (kg/m²)

6,70

Installation

DRY

Applications

  • High thickness screeds for commercial and residential use
  • Technical equipment
  • Industrial machines

Download

Video

Optionals

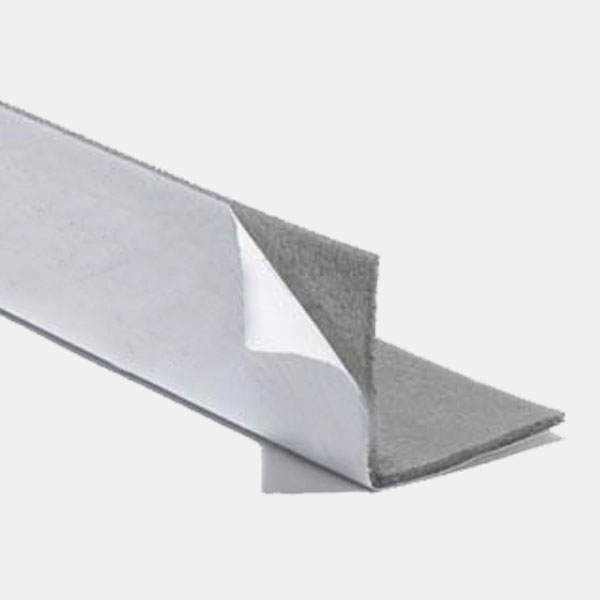

PROFYLE
Decoupling element made of adhesive and shaped polyethylene
Details

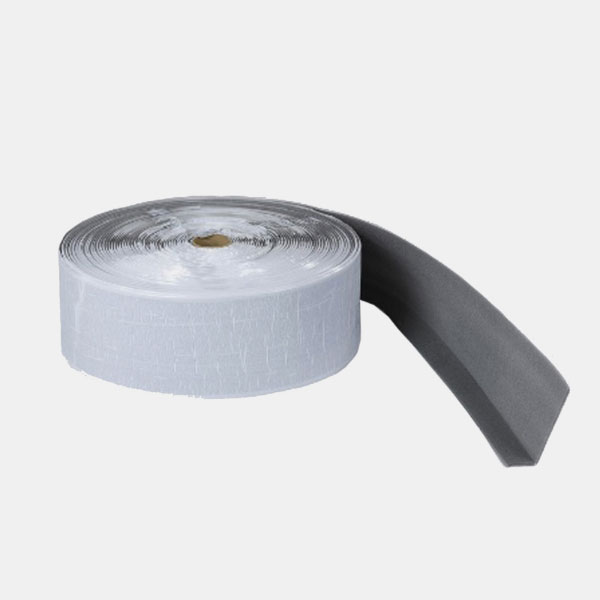

PROFYLE FLAT
Decoupling element made of adhesive and pre-cut polyethylene
Details
STIK HD
High adhesion strenght tape with superior ageing and weatherability performance
Details
