TRYWALL 48

High performance airborne noise acoustic insulation consisting of a coupled panel composed of polyester fibre and sbr and epdm rubber granules

TRYWALL 48

SKU: 50525bc8b4c4 Categories: , , ,
Application: CLT wall , Plasterboard

Description

  • High acoustic and thermal insulation values
  • High resistance to dampness and condensate build-up
  • Extremely easy application

l>

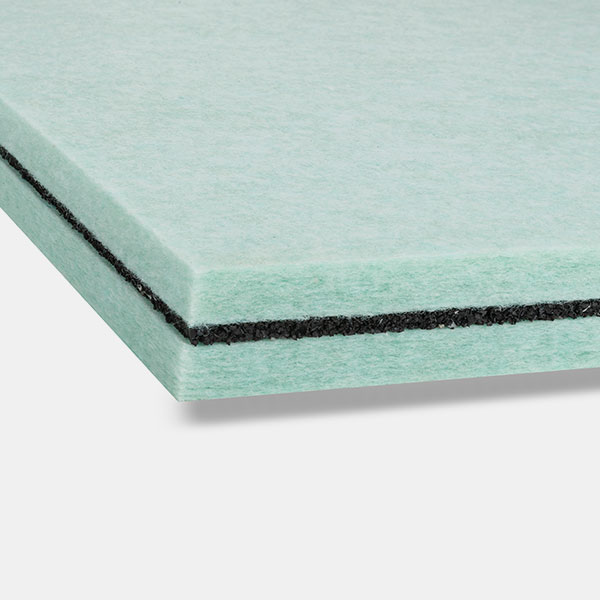

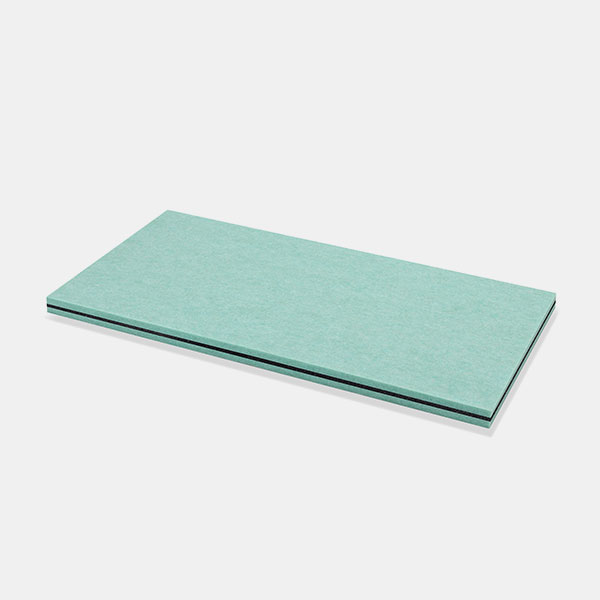

Airborne noise Insulation in 48 mm thick pre-assembled panels made of a central panel SBR (Stirene Butadiene Rubber) rubber granules and EPDM (Ethylene Propylene Diene Monomer) rubber granules thickness 8 mm, density 800 kg/m³ , hot pressed with an polyurethane binder; on both external sides there are two panels in polyester fibre thickness 20 mm each, density 60 kg/m³. The panels dimensions are: 1,2 m length and 0,6 m width.

Additional information

Use

Wall

Application

CLT wall, Plasterboard

Under application

CLT wall, Plasterboard wall

Type

Wall

Thickness (mm)

48

Trasmission loss Rw (dB)

60

Superficial weight (kg/m²)

8,80

Installation

DRY/GLUE

Applications

  • Plasterboard walls
  • Suspended ceilings

Download

Video

Optionals

STYWALL AD PRO
High density under wall strip made of roll with tearproof support, consisting of sbr rubber granules
Details

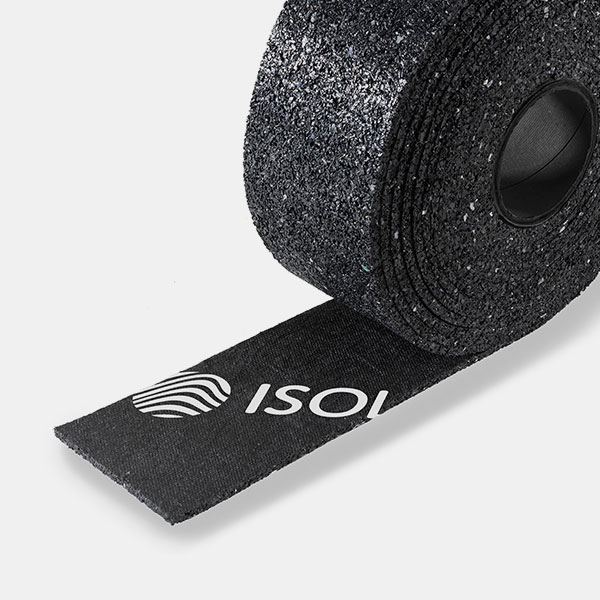

STYWALL S
High density under wall strip made of roll composed of sbr rubber granules
Details

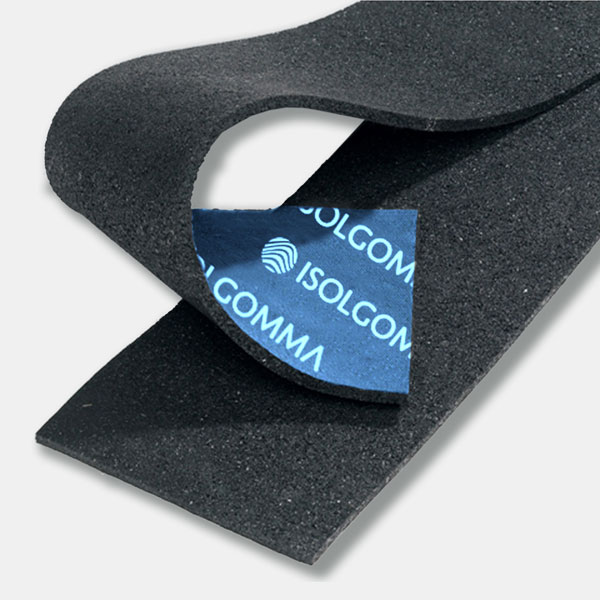

JOINWOOD
High density under wall acoustic insulation made of rubber granules
Details

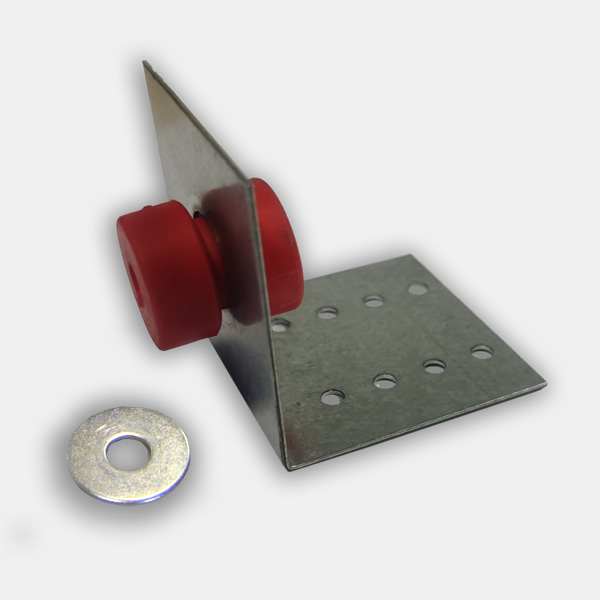

REDFIX
Anti-vibration connections for walls and ceiling
Details
