High performance airborne noise thermal acoustic insulation consisting of a coupled panel composed of polyester fibre, rubber granules and plasterboard layer
REWALL 40
Description
- High acoustic and thermal insulation values
- High resistance to dampness and condensate build-up
- Extremely easy application

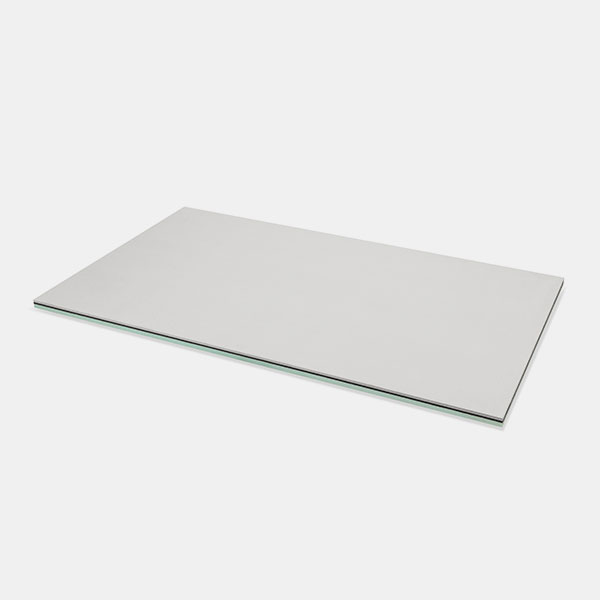

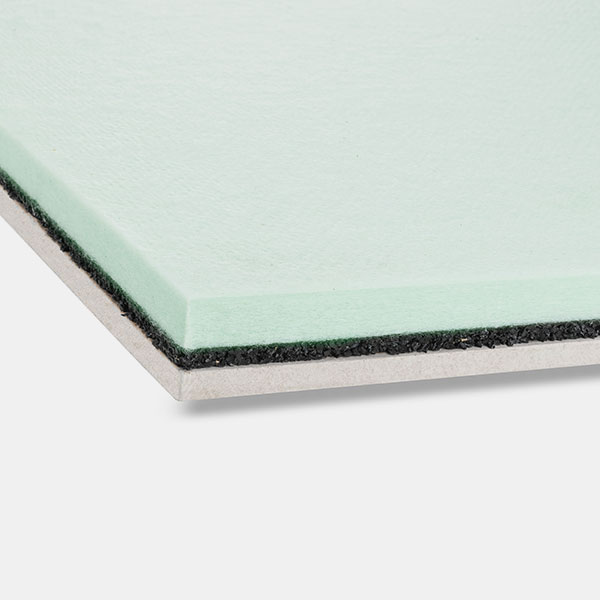

Airborne noise insulation in 40 mm-thick pre-assembled panels, made of a 8 mm-thick SBR (Stirene Butadiene Rubber) rubber granules hot pressed with polyurethane binder, density of 800 kg/m³, a 20 mm-thick polyester fiber panel, density of 100 kg/m³, and a 12.5 mm-thick plasterboard. The panels dimensions are 1.20 m width x 2.00 m length.
Additional information
| Use | Ceiling, Wall |
|---|---|
| Application | Ceiling, CLT wall, Single Wall |
| Under application | CLT wall, Coated ceiling, Single wall |
| Type | Wall |
| Thickness (mm) | 40 |
| Wall acoustic performance Rw (dB) | ≥ 63 |
| Superficial weight (kg/m²) | 18,00 |
| Installation | DRY/GLUE |
Applications
- Acoustic and thermal correction of partition walls and ceilings in homes
- Applicable in existing environments where building works cannot be carried out
- Relining of existing walls without having to use the traditional metal structure
