High performance airborne noise thermal-acoustic insulation consisting of a coupled panel composed of polyester fibre and plasterboard layer
REWALL 33B
Description
- High acoustic and thermal insulation values
- High resistance to dampness and condensate build-up
- Extremely easy application

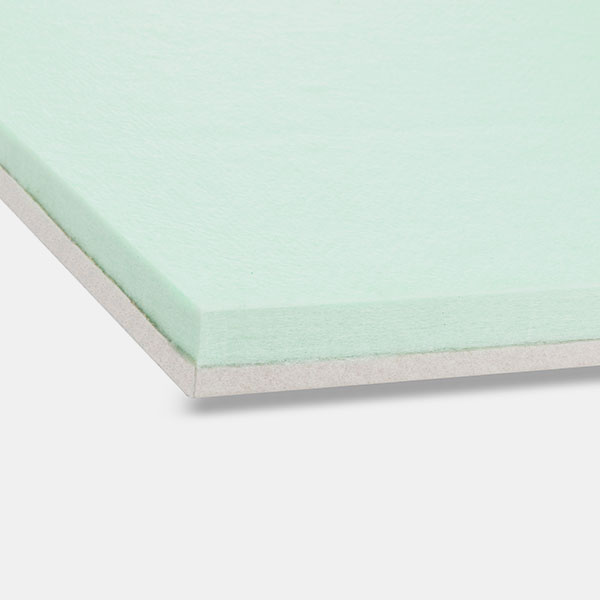

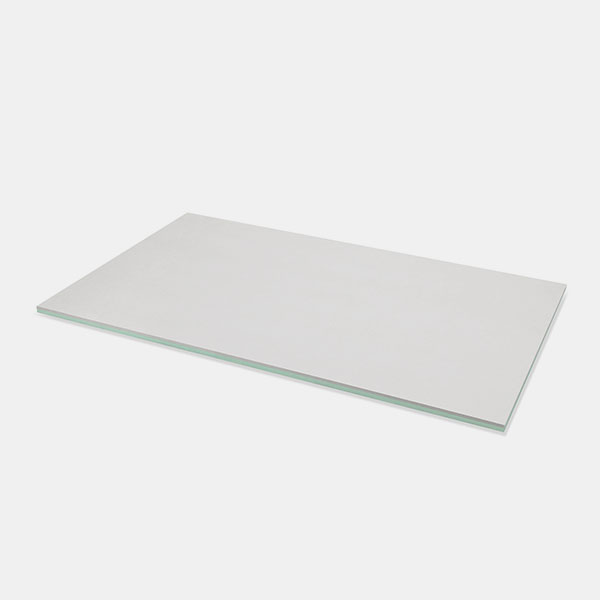

Airborne noise insulation in 33 mm-thick pre-assembled panels, made of a 20 mm-thick polyester fiber panel, density of 100 kg/m³ and a 12.5 mm-thick plasterboard slab. The panels dimensions are
1.20 m width x 2.00 m lenght.
1.20 m width x 2.00 m lenght.
Additional information
Use | Ceiling, Wall |
---|---|
Application | Ceiling, CLT wall, Single Wall |
Under application | CLT wall, Coated ceiling, Single wall |
Type | Wall |
Thickness (mm) | 33 |
Wall acoustic performance Rw (dB) | ≥ 55 |
Superficial weight (kg/m²) | 11,50 |
Installation | DRY/GLUE |
Campi d'impiego

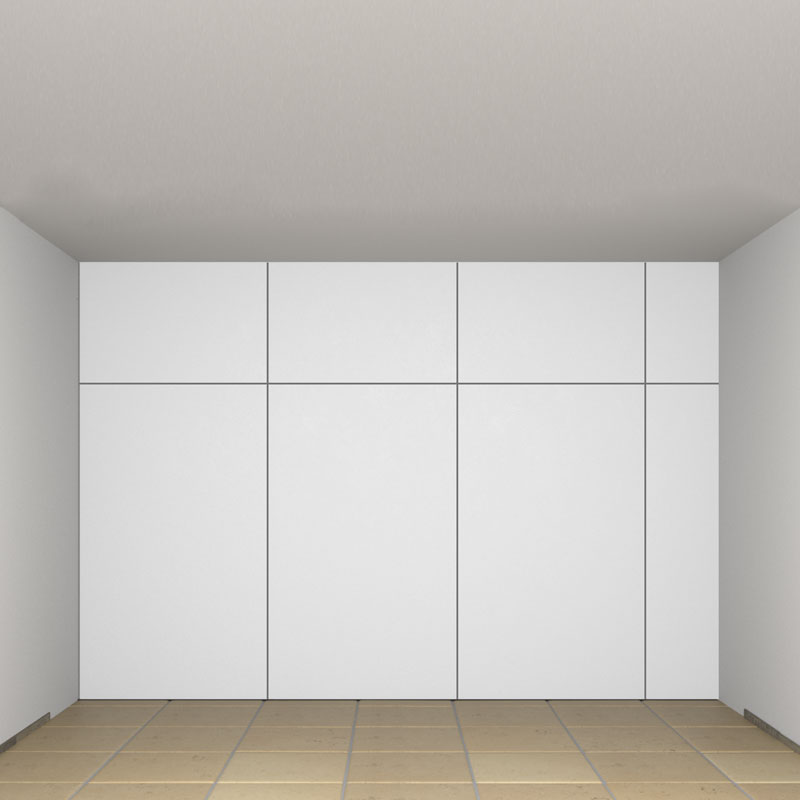

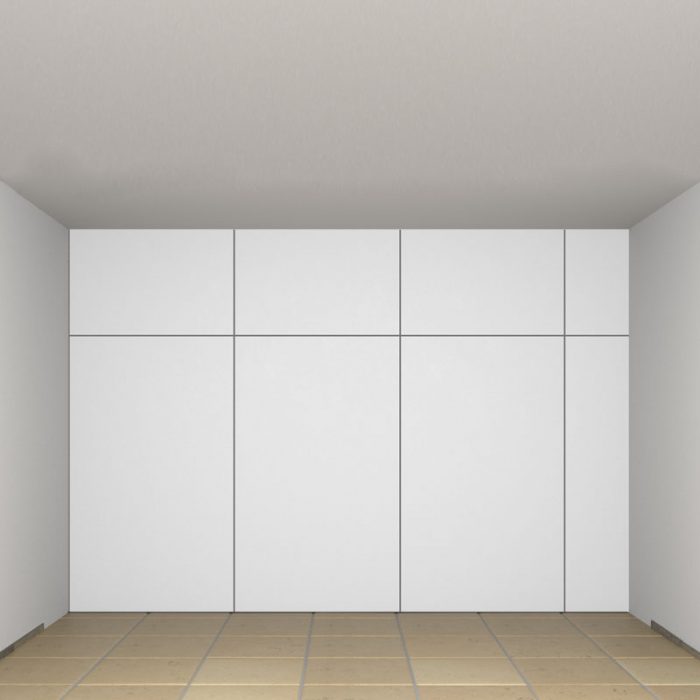

- Acoustic and thermal correction of partition walls and ceilings in homes
- Applicable in existing environments where building works cannot be carried out
- Relining of existing walls without having to use the traditional metal structure
