UPROLL

Impact noise acoustic insulation with high acoustic performance and mechanical stability, made in rolls with sbr rubber granules

UPROLL

UPROLL

SKU: a7300c4a2450 Categories: , , , Tags: ,
Application: Under screed

Description

  • High sound insulation performance in reduced thickness
  • Quick, easy and precise laying of the product
  • Resistant to dampness

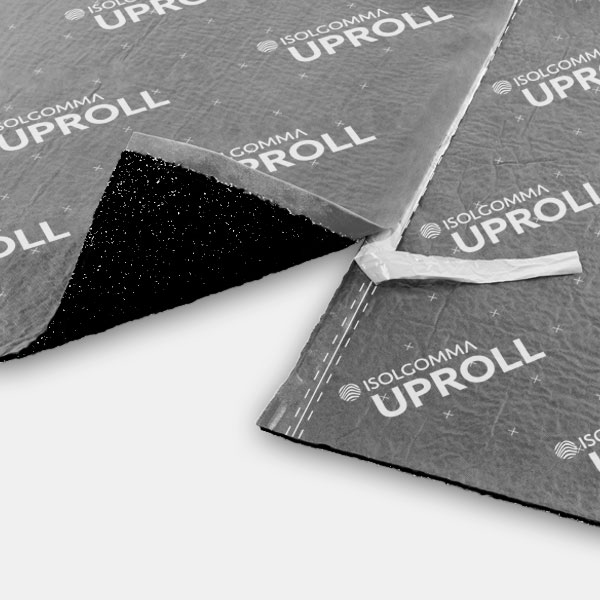

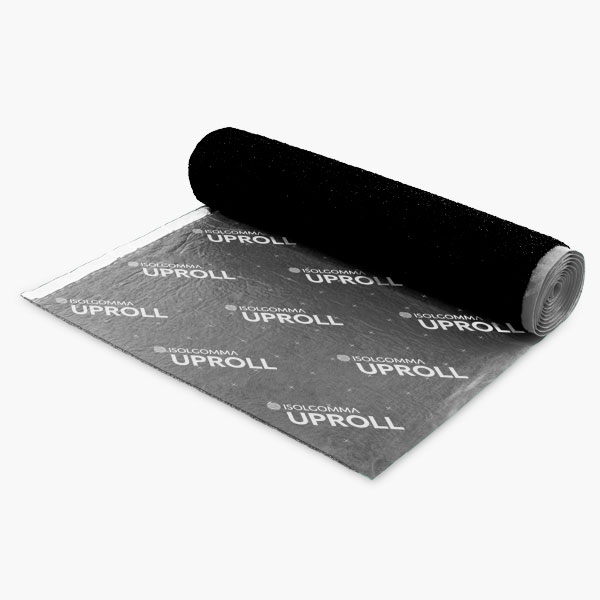

9 mm acoustic insulation rolls, made of SBR (Stirene Butadiene Rubber) fibres and granules rubber, compacted using a latex binder in a hot process. A grey synthetic non woven anti-stretch backing is applied on one side. The dimensions of the roll are: 500 cm lenght, 104 cm width including 4 cm adhesive side border for rolls overlapping during installation. The total mass surface is 3,10 kg/m². Dynamic stiffness s‘ 11 and impact sound pressure level attenuation 24 dB. Reaction to fire E, thermal conductivity coefficient 0,096 W/m K. Recycled
content 90%.

Additional information

Use

Floor

Application

Under screed

Under application

CLS floor

Type

Impact insulation

Thickness (mm)

9

Impact sound level attenuation ΔLw (dB)

24

Dynamic stiffness s' (dB)

11

Superficial weight (kg/m²)

3,10

Installation

DRY

Applications

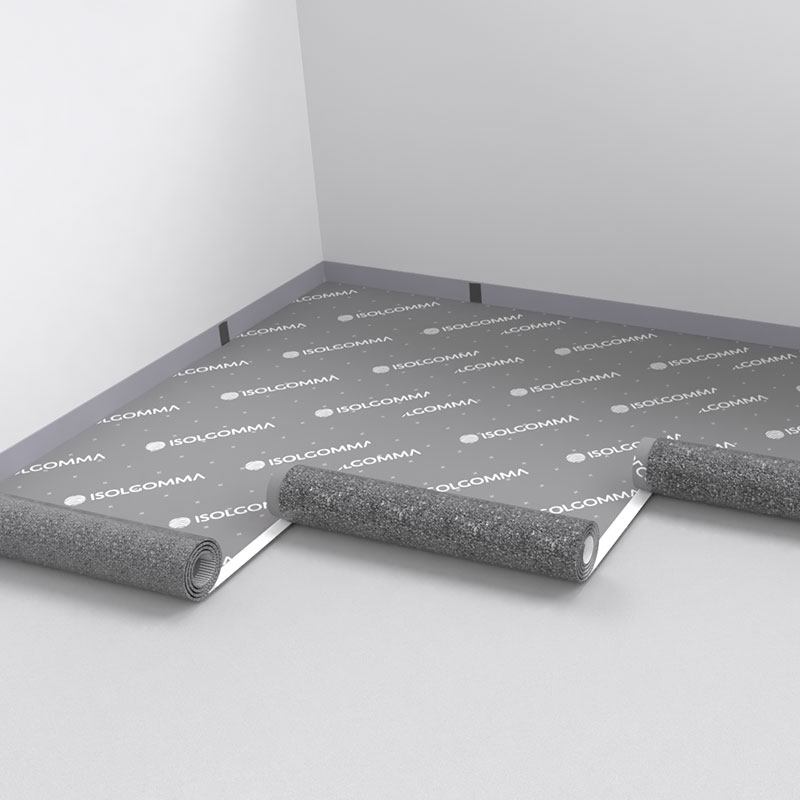

  • Floor slabs with floating floor with reduced thickness
  • Heated floors

Download

Video

Accessories

PROFYLE
Decoupling element made of adhesive and shaped polyethylene
Details
PROFYLE FLAT
Decoupling element made of adhesive and pre-cut polyethylene
Details
STIK HD
High adhesion strenght tape with superior ageing and weatherability performance
Details
