High performance impact noise acoustic insulation made in rolls with epdm rubber granules glued to a resin polyester fibre layer

UPGREI

UPGREI

SKU: 1bc6f13e0aeb Categories: , , , Tags: ,
Application: Under screed

Description

  • Very high acoustic and thermal performance
  • Extremely easy to lay
  • Resistant to dampness

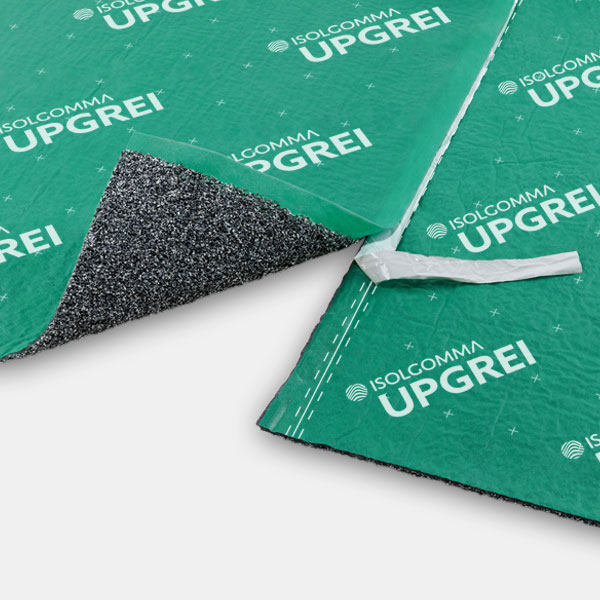

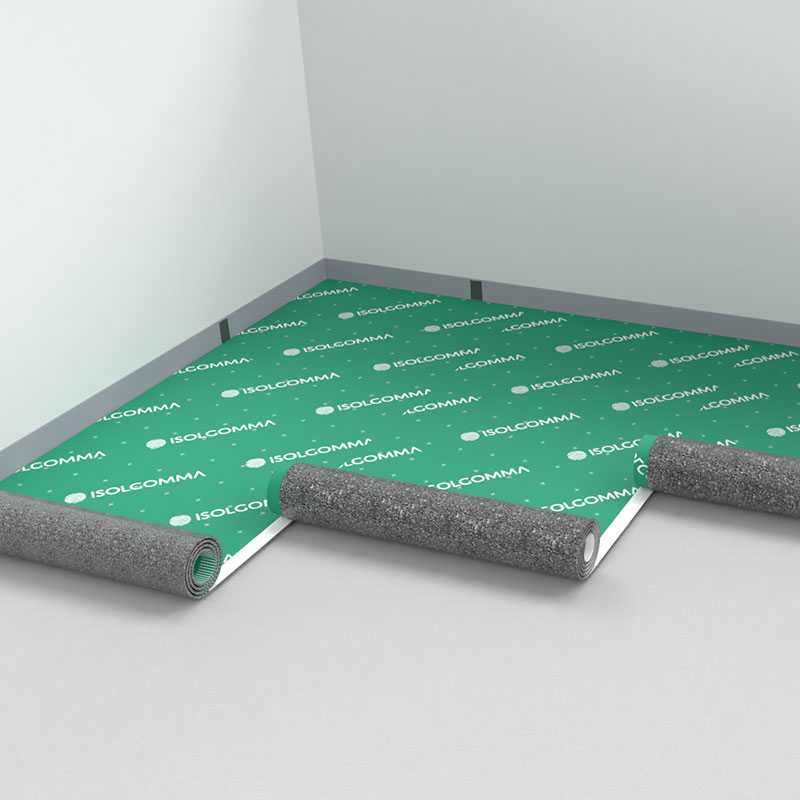

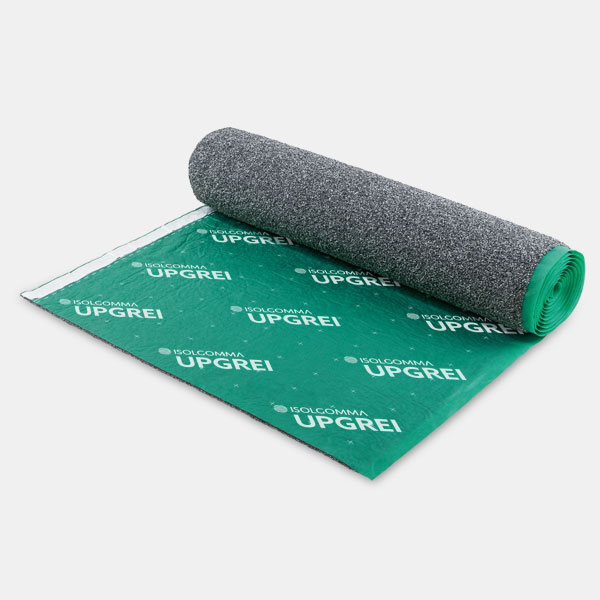

10 mm-thick acoustic insulation rolls, made of EPDM rubber granules that are anchored with carboxylate latex binder to a backing, made with non-woven, greencoloured, anti-stretch film and polyester fibre. The dimensions of the roll are: 5,0 m lenght, 1,04 m width including 40 mm adhesive side border for rolls overlapping during installation. The total mass surface is 2,65 kg/m². Dynamic stiffness s‘ 6 and impact sound pressure level attenuation 26 dB. Reaction to fire E class, thermal conductivity coefficient 0,043 W/m K. Recycled content 80%.

Additional information

Use

Floor

Application

Under screed

Under application

CLS floor, CLT floor, Timber joists floor

Type

Impact insulation

Thickness (mm)

10

Impact sound level attenuation ΔLw (dB)

26

Dynamic stiffness s' (dB)

6

Superficial weight (kg/m²)

2,65

Installation

DRY

Applications

  • Traditional or light floors
  • Extra-thick screeds
  • Floors requiring high acoustic performance

Download

Video

Accessories

PROFYLE
Decoupling element made of adhesive and shaped polyethylene
Details
PROFYLE FLAT
Decoupling element made of adhesive and pre-cut polyethylene
Details
STIK HD
High adhesion strenght tape with superior ageing and weatherability performance
Details
