SYL 10AD

High stability impact noise acoustic insulation, consisting of rolls composed of SBR rubber granules 10 mm thickness

SYL 10AD

SKU: 77e2d2fe9bb2 Categories: , , , Tag:
Application: Under screed

Description

  • High sound insulation performance in reduced thickness
  • Easy installation
  • Long-lasting also in presence of water

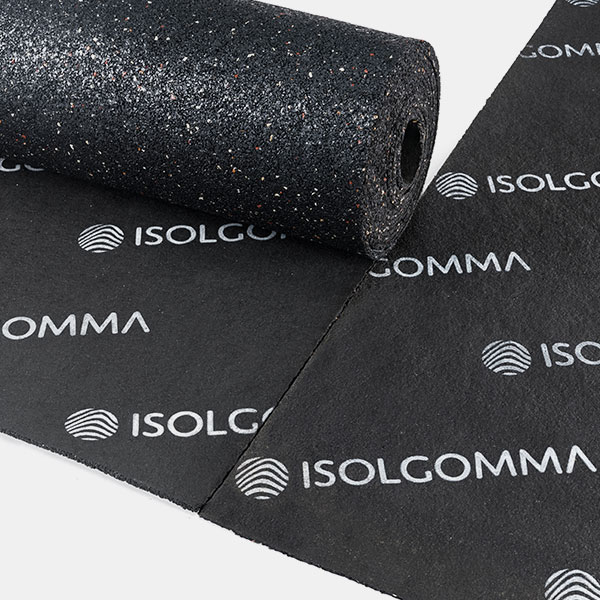

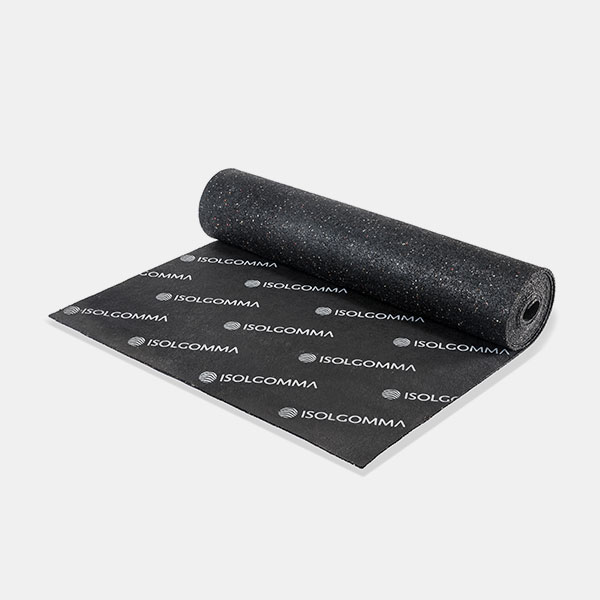

Under screed acoustic insulation supplied in rolls, thickness 10 mm, produced using selected rubber fibers and granules from End-of-Life Tyres (ELTs), compacted with a polyurethane glue in a hot process. A non woven, non-stretch synthetic membrane is applied on one side of panel, for added protection; density 780 kg/m³. Rolls have a length of 8 m and a width of 1,2 m.

Additional information

Use

Floor

Application

Under screed

Under application

CLS floor, CLT floor, Timber joists floor

Type

Impact insulation

Thickness (mm)

10

Impact sound level attenuation ΔLw (dB)

17

Dynamic stiffness s' (dB)

68

Superficial weight (kg/m²)

8,00

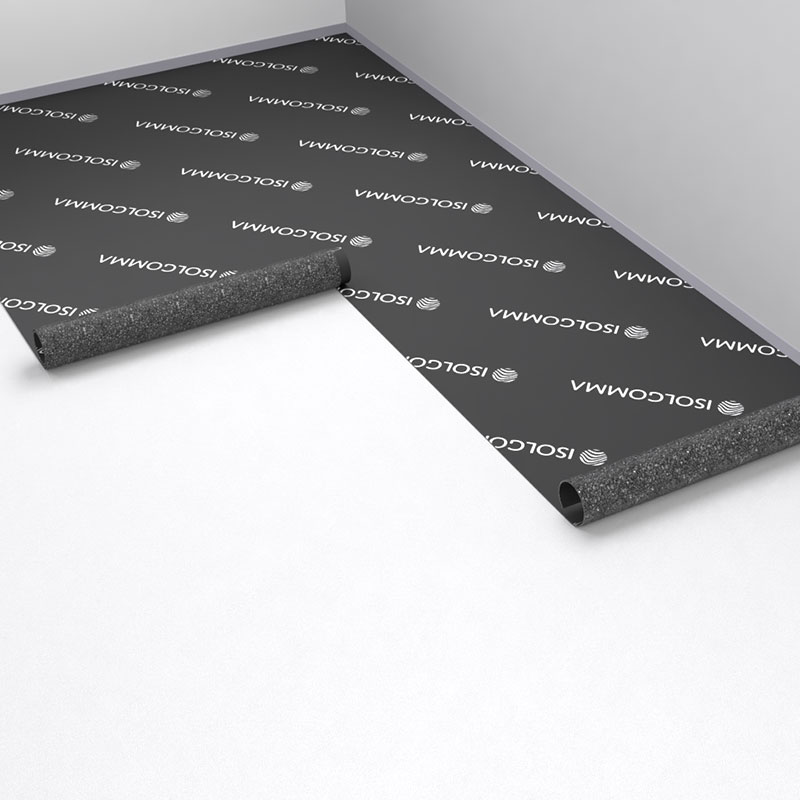

Installation

DRY

Application's fields

  • Commercial use high thickness floors
  • Wooden floors
  • Decoupling of structures

Download

Video

Accessories

PROFYLE
Decoupling element made of adhesive and shaped polyethylene
Details
PROFYLE FLAT
Decoupling element made of adhesive and pre-cut polyethylene
Details
STIK HD
High adhesion strenght tape with superior ageing and weatherability performance
Details
