HIGHMAT 50

Impact noise acoustic insulation with high thermal-acoustic performances, consisting of polyester fibre panels and punctual supports in granular rubber sbr and epdm 50 mm thickness

HIGHMAT 50

SKU: f21fca36b48b Categories: , , ,
Application: Under screed

Description

  • Superior acoustic and thermal insulation
  • Quick and easy laying of the product
  • Flexible use

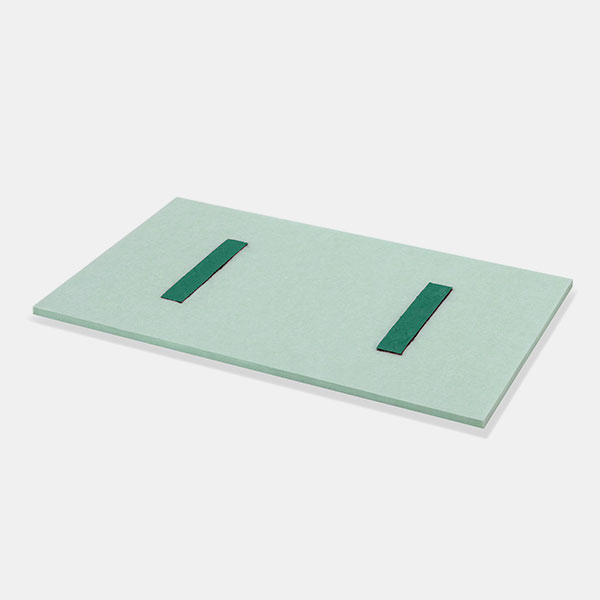

Acoustic insulation panels made of two rubber bearings inserted in a polyesther fiber mat, with a total thickness of 50 mm. The bearings are made of SBR and EPDM rubber granules and fibers compacted using polyurethane glue in a hot process, protected with a non-woven, non-stretch, synthetic membrane on one side; the dimensions of the rubber bearings are 500 mm x 50 mm. The polyesther fiber mat has a density of 60 kg/m³ and the total dimensions of the assembled panel are 1000 mm x 600 mm. Dynamic stiffness s‘ 5 and impact sound pressure level attenuation 39 dB.

Additional information

Use

Floor

Application

Under screed

Under application

CLS floor, CLT floor, Timber joists floor

Type

Impact insulation

Thickness (mm)

50

Impact sound level attenuation ΔLw (dB)

39

Dynamic stiffness s' (dB)

5

Superficial weight (kg/m²)

3,50

Installation

DRY

Applications

  • Floor slabs with floating floor
  • Technical rooms
  • Music and video production studios

Download

Video

Accessories

PROFYLE FLAT
Decoupling element made of adhesive and pre-cut polyethylene
Details

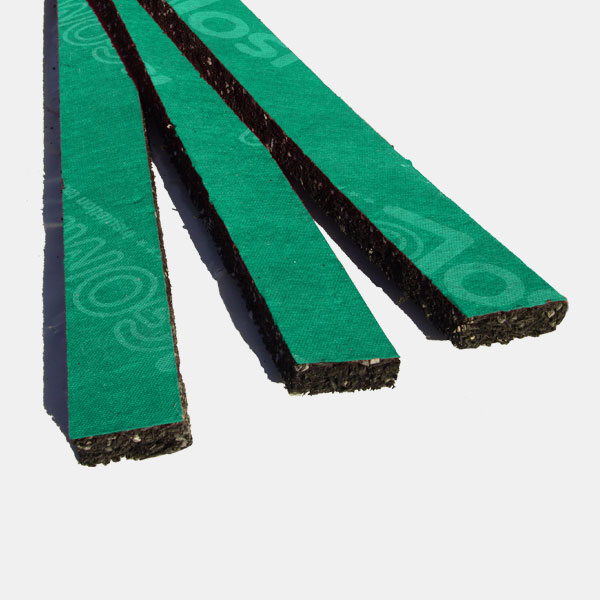

SIDE HIGHMAT
Perimeter edge
Details
STIK HD
High adhesion strenght tape with superior ageing and weatherability performance
Details
