Impact noise acoustic insulation with high thermal-acoustic performances, consisting of polyester fibre panels and punctual supports in granular rubber sbr and epdm 30 mm thickness
HIGHMAT 30
Description
- Superior acoustic and thermal insulation
- Quick and easy laying of the product
- Flexible use

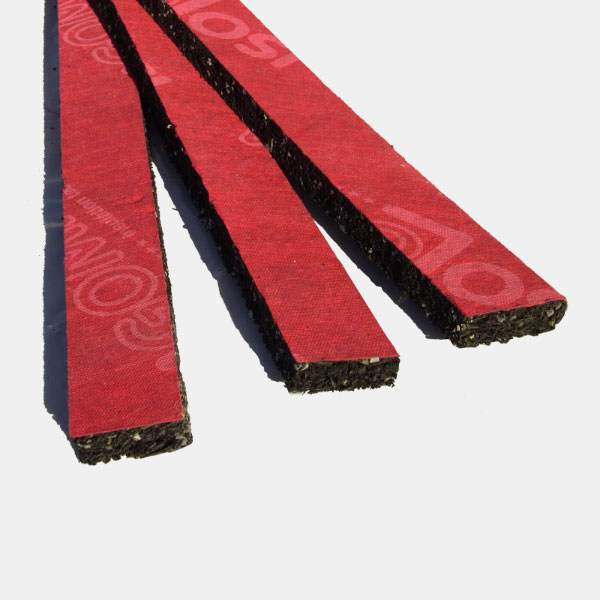

Acoustic insulation panels made of two rubber bearings inserted in a polyesther fiber mat, with a total thickness of 30 mm. The bearings are made of SBR and EPDM rubber granules and fibers compacted using polyurethane glue in a hot process, protected with a non-woven, non-stretch, synthetic membrane on one side; the dimensions of the rubber bearings are 300 mm x 50 mm. The polyesther fiber mat has a density of 60 kg/m³ and the total dimensions of the assembled panel are 1000 mm x 600 mm. Dynamic stiffness s‘ 4 and impact sound pressure level attenuation 36 dB.
Additional information
| Use | Floor |
|---|---|
| Application | Under screed |
| Under application | CLS floor, CLT floor, Timber joists floor |
| Type | Impact insulation |
| Thickness (mm) | 30 |
| Impact sound level attenuation ΔLw (dB) | 36 |
| Dynamic stiffness s' (dB) | 4 |
| Superficial weight (kg/m²) | 1,90 |
| Installation | DRY |
Applications
- Floor slabs with floating floor
- Technical rooms
- Music and video production studios
