High performance airborne noise acoustic insulation consisting of a coupled panel composed by rubber granules and a plasterboard layer 33 mm thickness
MUSTWALL 33B
Description
- High acoustic insulation values
- Durability
- Extremely easy application

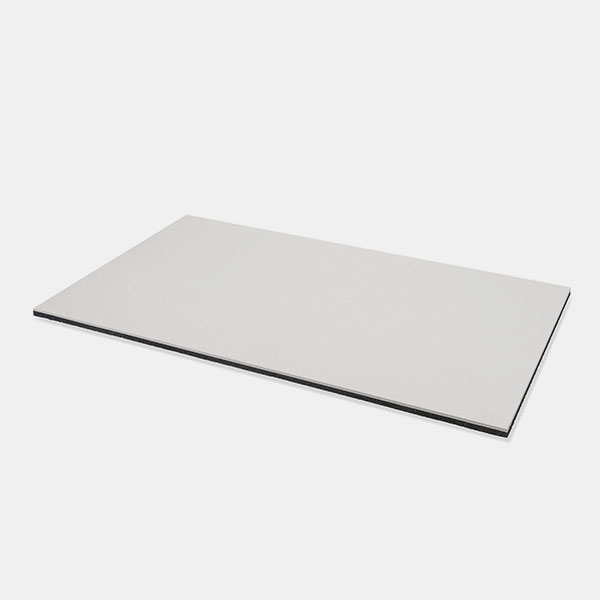

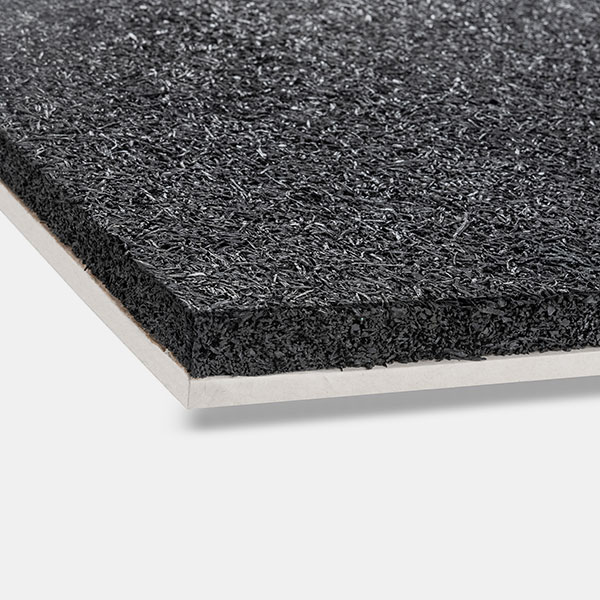

Pre-assembled 33 mm-thick acoustic insulation wall panels, made of a 20 mm-thick of rubber granules from End-of-Life Tyres (ELTs), assembled with a 12.5 mm-thick plasterboard. The panels dimensions are 1.20 m width x 2.00 m lenght.
Additional information
Use | Ceiling, Wall |
---|---|
Application | Ceiling, CLT wall, Single Wall |
Under application | CLT wall, Coated ceiling, Single wall |
Type | Wall |
Thickness (mm) | 33 |
Wall acoustic performance Rw (dB) | ≥ 59 |
False ceiling acoustic performance Rw (dB) | ≥ 64 |
Superficial weight (kg/m²) | 19,50 |
Installation | DRY/GLUE |
Application's fields
- Acoustic and thermal correction of partition walls and ceilings in homes
- Applicable in existing environments where building works cannot be carried out
- Relining of existing walls without having to use the traditional metal structure
